To help you understand how the Moderne Platform works and how it interacts with your environment and services, this document will:

How Moderne fits into the software development lifecycle​

Moderne's SaaS allows permitted users to run recipes on code in the repositories you've added to the platform. These recipes can yield pull requests (PRs) or commits that transform the code.

Once the artifact is published (typically through mass ingestion), the Moderne Connector will send the changes to Moderne so that the internal state can be updated. After that happens, new recipes can be run against the new artifacts and the process will repeat.

Moderne + SDL

Architecture diagram​

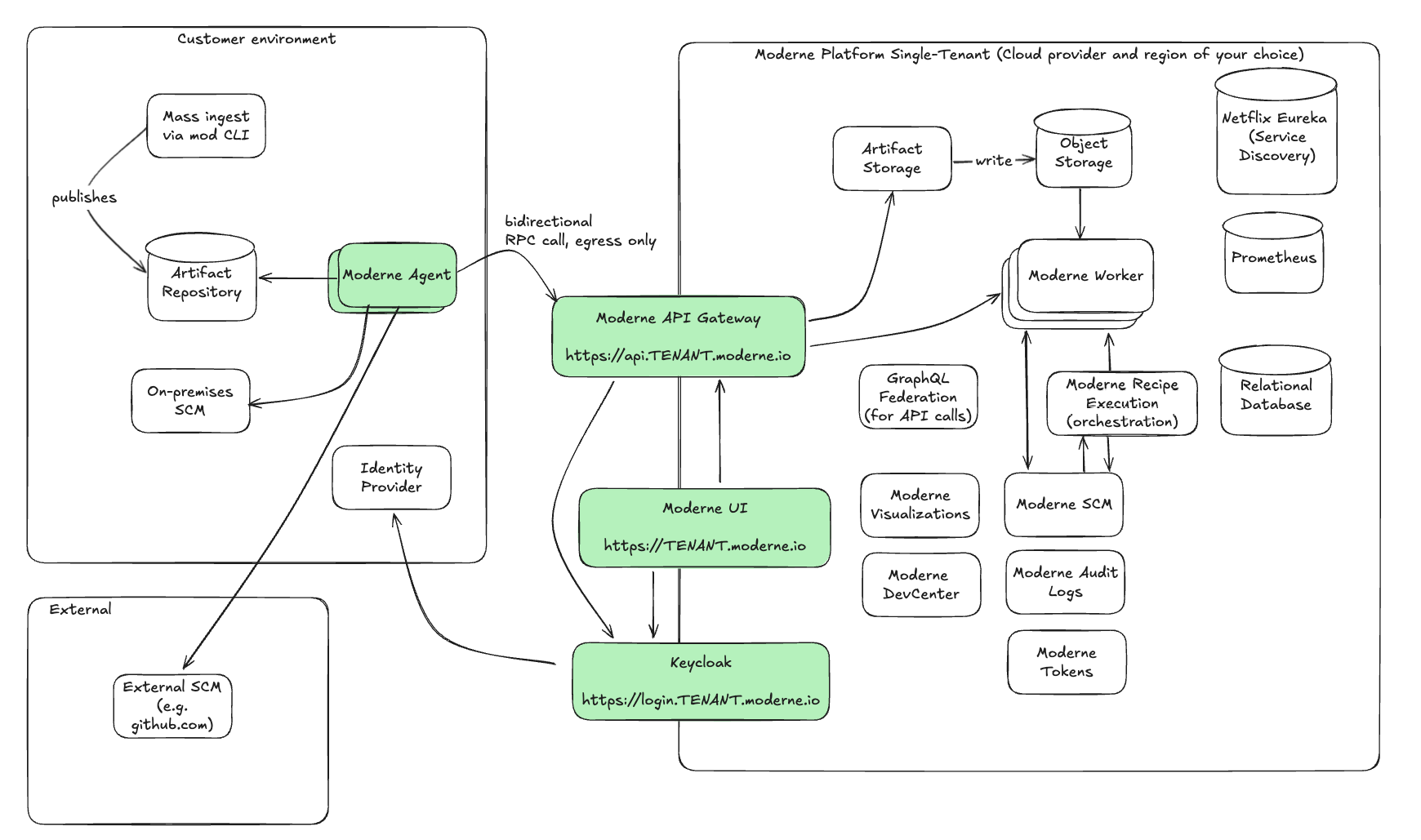

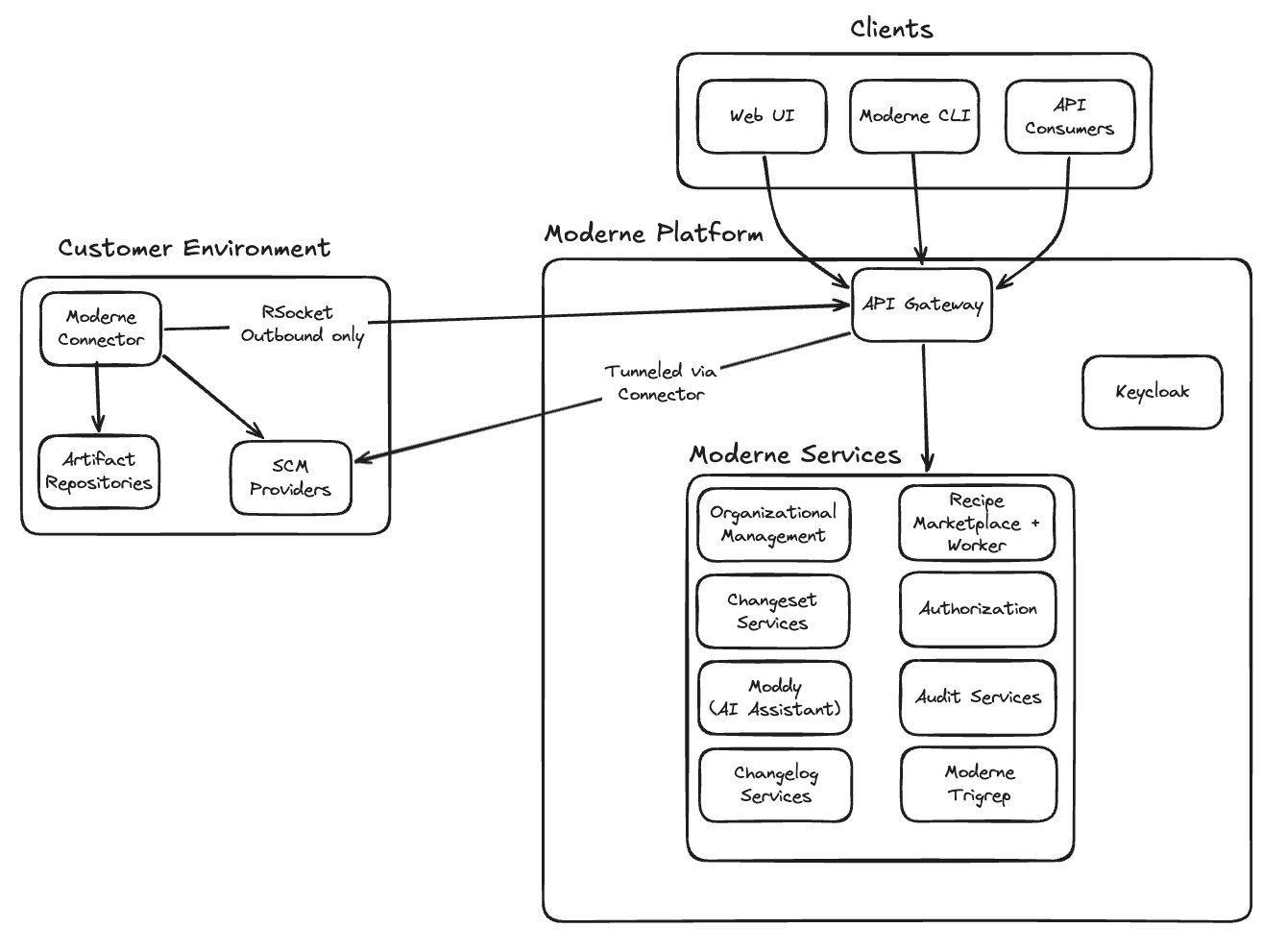

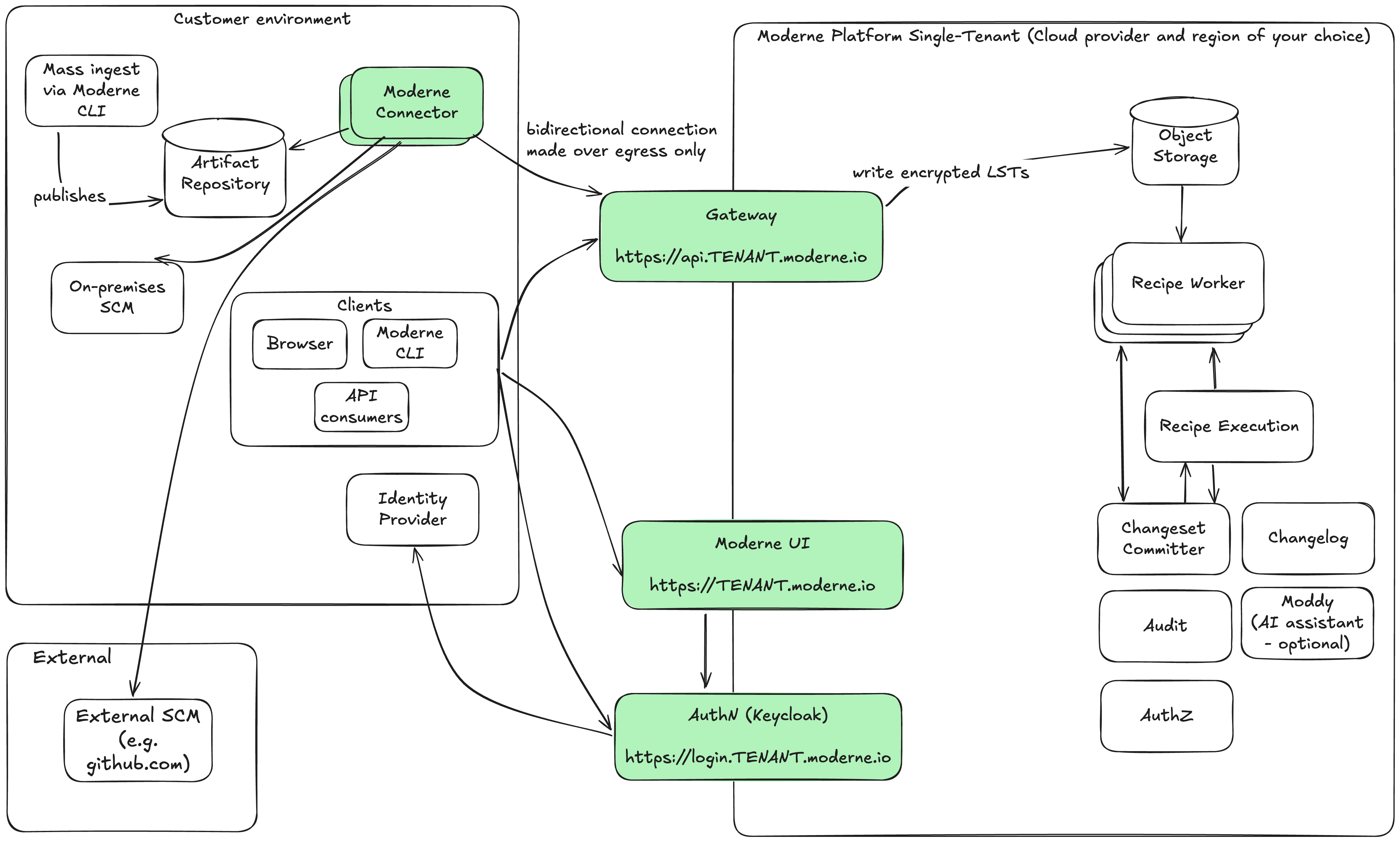

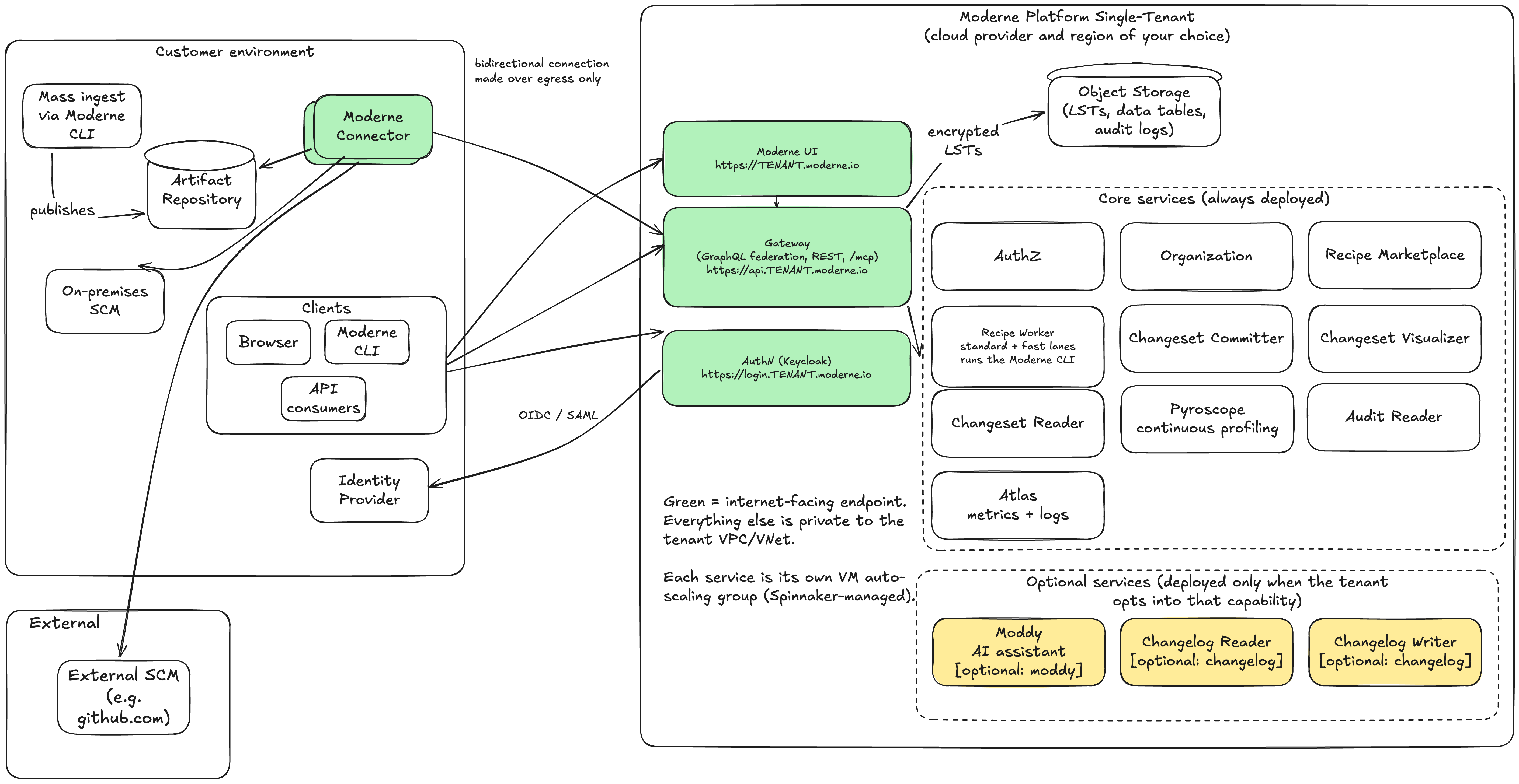

Below is a high-level architecture diagram that shows the flow of data between Moderne and a typical customer environment. Arrows indicate communication between components. The details of each component can be found in the following sections.

Key components​

Mass ingest with mod CLI​

In order for Moderne to know the current state of your code, artifacts will need to be generated that contain a serialized representation of your code's LSTs. These artifacts must be put inside an artifact repository that the Moderne Connector has access to.

To do this, you'll want to set up mass ingestion with the Moderne CLI. For instructions on how to do that, please read our mass ingestion guide.

Moderne Connector​

The Moderne Connector is an on-premises agent deployed within your network that bridges your environment with the Moderne Platform. All data that Moderne needs to function will pass over this bridge and flow into the Moderne API gateway. As this data is sent to Moderne, it's encrypted — with the key being kept in your environment. Whenever Moderne needs to access any data, it will request this key and the data will be decrypted for a short time before it's thrown away. If you decide you no longer want Moderne to have access to anything, you can shut off the Connector and all of your data that Moderne has will no longer be decryptable.

There are a variety of tools and services that you can configure the Connector to be connected to based on the needs of your team.

At a minimum, the Connector will need to connect to:

  • One or more of your artifact repositories so that changes to the Moderne LST artifacts kept in them can be sent to Moderne
    • This is configured via the Artifactory Query Language or via Maven configuration. Only artifacts that match what you've configured will be sent to Moderne.
  • Your SCM(s) so that PRs or commits can be created by approved users in Moderne

Your team may also wish to configure the Connector to:

  • Look in your artifact repositories for custom recipe JARs your team creates so that those recipes can be run in the Moderne SaaS
  • Proxy requests to LLM providers for AI-powered features like Moddy
info

For more details, see the Connector configuration documentation.

Setup requirements

You must:

  • Deploy a Moderne-provided OCI image adjacent to Artifactory
  • Ensure the Connector is able to make an outbound HTTPS request to https://api.TENANT.moderne.io
  • Ensure the Connector is configured with an Artifactory user that is authorized to make find AQL requests against repositories containing LST artifacts
  • Ensure the Connector is configured with an Artifactory user capable of making GET requests to obtain the above LST artifacts
  • Ensure that the deployed image is configured with an encryption key (stored in Hashicorp Vault or some other key management service)
  • Ensure the Connector can connect to your SCM(s) to authorize users to see code in the Moderne SaaS and to allow commits on their behalf
tip

Multiple Connectors can be configured for high availability or to connect to only some of these services.

Connector security​

Connectors initiate connections to the Moderne API gateway via the RSocket protocol. Moderne will never initiate an API call to the Connector. Because of that, only egress from your environment needs to be open.

When you set up a Connector, Moderne will share a token with you that you must configure in the Moderne Connectors you create. Moderne will reject any connection attempts from unauthorized Connector instances. In this way, Moderne requires a minimum level of client verification as an extra security precaution.

The connection to Moderne is established over layer 7, so you may choose to route traffic from the Connector through your own layer 7 gateway. This might be chosen to satisfy a desire for Moderne's API gateway to perform client verification of an inbound Connector connection using a mechanism like X.509 in addition to token-based verification.

These measures act in concert with techniques to limit IP addressability of the Moderne API gateway to enhance the overall security posture.

Moderne API gateway​

The Moderne API gateway serves as the single entry point to the Moderne Platform. It communicates with the Moderne Connector to get data from your services to Moderne. It is the only component with a public IP address that can communicate with other Moderne services. The Moderne UI and Keycloak also have public IP addresses, but they can't communicate with other Moderne services.

The API gateway uses Apollo Router to compose the GraphQL schemas of Moderne's microservices into a single unified API. All GraphQL requests pass through Apollo Router on their way to the individual service that supports a piece of the schema. This federated approach allows Moderne to deploy and scale services independently while presenting a single, consistent API surface.

The API gateway is responsible for:

  • Handling API requests from your developers or your tools
  • Handling API requests from the Moderne UI
  • Handling encrypted LST artifacts from the Moderne Connector(s)
  • Handling encrypted custom recipe artifacts from the Moderne Connector(s)
  • Routing GraphQL requests to the appropriate Moderne microservices
  • Bridging HTTP and SSH tunnels to the Connector for SCM operations
  • Rate limiting as needed to guard Moderne services against overuse by a particular user

Authorized users in your company can access audit logs for this gateway via an API.

info

The Moderne API gateway is configured with a Moderne-managed SSL certificate.

Setup requirements

You must:

  • Ensure that https://api.TENANT.moderne.io is on the accept list for outbound HTTPS traffic from the Moderne Connector
  • Ensure that https://api.TENANT.moderne.io is on the accept list for outbound HTTPS traffic from the developer's machines

Moderne user interface​

The Moderne UI provides a browser-based interface for:

  • Executing search and transformation recipes across your codebase
  • Reviewing and committing code changes produced by recipe runs
  • Searching code across all repositories with Moderne Trigrep
  • Monitoring upgrade, migration, and security progress via the DevCenter
  • Conversing with Moddy, the AI assistant, to discover and run recipes
  • Building new recipes based on other recipes
  • Viewing audit logs
  • Generating access tokens for interacting with the Moderne API

The Moderne UI is implemented with client-side Javascript. The Moderne UI is one of three components with a public IP address (the other two being the Moderne API gateway and Keycloak).

Setup requirements

You must:

  • Ensure that https://TENANT.moderne.io is on the accept list for outbound HTTPS traffic from the developer's machines

Keycloak​

Keycloak is an open-source identity and access management system. Moderne services request authorization information for a user from Keycloak. Keycloak then calls out to your identity provider (such as LDAP, Okta, or Keycloak) to determine who is authorized for what.

Setup requirements

You must:

  • Ensure that https://login.TENANT.moderne.io is on the accept list for outbound HTTPS traffic from the developer's machines
tip

As configuring identity providers between services can be quite complex, the setup for Keycloak is usually done over a Zoom meeting with Moderne and your company.

Organization management​

The organization management services maintain the hierarchy of repositories that your team has onboarded into Moderne. Organizations provide a logical grouping of repositories that scopes visibility, permissions, and recipe execution targets.

The indexer works with the Connector to scan your configured artifact sources for updates and pull LST artifacts and recipe JARs into Moderne's internal data store. These artifacts are encrypted in transit and at rest. A reader serves organization and repository data to the rest of the platform. When you run a recipe, you select an organization to run it against — this determines which repositories are included.

Setup requirements

  • None

Recipe marketplace and worker​

The recipe marketplace manages the catalog of available recipes, including discovery, search, and installation. Recipes can come from the public OpenRewrite marketplace, from custom recipe JARs your team publishes to your artifact repositories, or from inline YAML definitions.

When you run a recipe, the recipe worker picks up the request, executes the recipe against the LSTs for the target repositories, and produces a changeset of results. Workers decrypt LST and recipe artifacts by requesting a customer-provided symmetric key via the API gateway from the Connector. Workers discard this key at the end of every request.

Workers also fetch a user's SCM OAuth token via the API gateway in order to make authorization decisions about which repositories said user is allowed to read from. This ensures Moderne's read access is aligned with a user's SCM access in real-time for every recipe run request.

Setup requirements

  • None

Changeset services​

The changeset services handle everything that happens after a recipe produces results:

  • Changeset reader — reads and presents recipe run results, file-level diffs, and data tables for review in the UI
  • Changeset committer — commits approved changes back to your SCM, creating branches, PRs, or direct commits depending on your configuration. The committer supports all major SCM providers with full PR workflows including forking, draft PRs, auto-merge, and reviewer assignment. Requests to your SCM are routed through the API gateway and Connector.
  • Changeset visualizer — generates visualizations from recipe run data tables

Setup requirements

  • None

Authorization service​

The authorization service manages user identity, authentication tokens, and SCM OAuth integration. It handles:

  • Creating and managing personal access tokens (PATs) for API access from IDEs and custom tooling
  • Coordinating OAuth flows with your SCM providers so that users can authorize Moderne to act on their behalf
  • Checking permissions for platform operations

Please see our token documentation for more information on how to create, work with, and revoke tokens. For details on the authentication model, see the authentication reference.

Setup requirements

  • None

Moddy​

Moddy is Moderne's AI-powered assistant that helps you discover and execute recipes through conversational interaction. Moddy can search the recipe catalog, suggest transformations for your goals, and run recipes on your behalf.

If your organization uses an LLM provider, the Connector can proxy requests to your LLM endpoint so that Moddy operates within your infrastructure's security boundaries.

For more details, see the Moddy documentation and the AI architecture reference.

Setup requirements

  • None (LLM provider access is optional and configured via the Connector)

Audit service​

The audit service tracks platform events for compliance and operational visibility. Individual Moderne microservices contribute to the audit log when they perform any interaction on behalf of users.

Audit logs can be retrieved via a paginated GraphQL API or via a REST call that responds in the CEF format.

For more details, see the audit logging reference.

Setup requirements

  • None

Changelog​

The changelog service ingests commit and pull request activity from your SCM providers to provide an organizational activity feed. It collects changes via webhooks (for near-real-time updates) and periodic polling (for completeness), then presents a unified view of recent code changes across your repositories.

Setup requirements

  • None (webhook configuration is optional but recommended for lower latency)

DevCenter​

The DevCenter is an organizational dashboard that aggregates recipe run results into actionable metrics. It tracks upgrade, migration, and security progress across all repositories in your organization, helping you understand where your codebase stands and what work remains.

For more details, see the DevCenter guide.

Setup requirements

  • None

Moderne Trigrep​

Moderne Trigrep provides code search across all repositories in your organization. You can search for code patterns, function calls, imports, and other structural elements across your entire codebase without needing to clone repositories locally.

For more details, see the Moderne Trigrep documentation.

Setup requirements

  • None
