Troubleshooting LST issues

This guide will help you diagnose and resolve common issues with Lossless Semantic Trees (LSTs) in the Moderne platform.

LST built but not showing up in an organization

Common root causes

When an LST is missing from your organization, the issue is typically caused by:

• Origin mismatch: The repository's origin doesn't match your version control system (VCS) configuration.
• Path/branch mismatch: The repository's path or branch doesn't match what's defined in your organization hierarchy.

Troubleshooting steps

Step 1: Determine your organization setup

Does your company provide an organizational hierarchy to Moderne? If so, jump to Step 2b. If not, proceed to Step 2a.

Step 2a: No organizational hierarchy provided

If your company does not provide an organizational hierarchy to Moderne, then your issue is an origin mismatch.

To diagnose:

1. Navigate to the repositories list located at https://TENANT.moderne.io/organizations (replace TENANT in the URL with your company's Moderne tenant)
2. Search for the repository whose LST is missing
3. You should see a warning icon in the origin column. If you mouse over it, you will see a warning about a "Missing SCM info for <some VCS>". Remember that VCS for the next step.

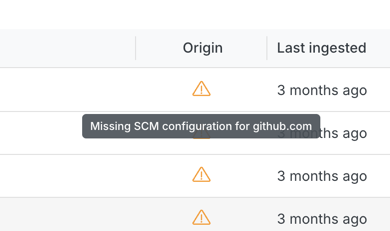

An example of what a repo with a missing SCM configuration looks like

To fix:

Check your VCS URL in your Agent configuration. For example, if this is a GitHub repo, check that MODERNE_AGENT_GITHUB_0_URL is https://github.com (or the base URL of your on-prem GitHub instance).

If your VCS is Bitbucket Server or Bitbucket Data Center, and you use a non-standard SSH port or a different URL, make sure that you have an alternate URL defined via MODERNE_AGENT_BITBUCKET_0_ALTERNATEURLS_0.

Step 2b: Organizational hierarchy provided

If your company does provide an organizational hierarchy, the issue could be either an origin mismatch or a path/branch mismatch.

To diagnose:

1. Navigate to the GraphQL API explorer located at https://TENANT.moderne.io/graphql (replace TENANT in the URL with your company's Moderne tenant)
2. Run the following GraphQL query:

query organizationlessRepositories {
  organizationlessRepositories {
    count
    pageInfo {
      hasNextPage
      startCursor
      endCursor
    }
    edges {
      node {
        origin
        path
        branch
      }
    }
  }
}

info

The organizationlessRepositories query returns a paginated list of repositories that are not part of any organization. By default, it returns up to 100 results at a time.

To retrieve additional results, use the after cursor from the pageInfo.endCursor field in a subsequent request.

Example query:

query {
 organizationlessRepositories(first: 100, after: "END_CURSOR_HERE") {
   edges {
     node {
       origin
       path
       branch
     }
   }
   pageInfo {
     endCursor
     hasNextPage
   }
 }
}

3. Look through the results and see if your repository is listed there.

• If found: Your repository exists, but doesn't match the origin, path, or branch defined in your organizational hierarchy. See the fix below.
• If not found: Proceed to check for an origin mismatch (the next section).

To fix:

Update your repos.csv file to ensure the origin, path, and branch values match your repository exactly.

Check for an origin mismatch

To diagnose:

1. Navigate to https://TENANT.moderne.io/organizations (replace TENANT in the URL with your company's Moderne tenant)
2. Click Organization in the left nav and select the organization you expect this repository to appear in:

An example of selecting the OpenRewrite organization.

3. Search for the repository in question
4. You should see a warning icon in the origin column. If you mouse over it, you will see a warning about a "Missing SCM info for <some VCS>". Remember that VCS for the next step.

An example of what a repo with a missing SCM configuration looks like

To fix:

Check your VCS URL in your Agent configuration. For example, if this is a GitHub repo, check that MODERNE_AGENT_GITHUB_0_URL is https://github.com (or the base URL of your on-prem GitHub instance).

If your VCS is Bitbucket Server or Bitbucket Data Center, and you use a non-standard SSH port or a different URL, make sure that you have an alternate URL defined via MODERNE_AGENT_BITBUCKET_0_ALTERNATEURLS_0.
