Configure an agent with Bitbucket Cloud access

In order to view recipe results and commit changes from a recipe back to Bitbucket, you'll need to create an application link in Bitbucket and configure the Moderne agent with the appropriate variables.

To assist with that, this guide will:

• Walk you through how to configure your Bitbucket Cloud instance to support the agent
• Provide you with a list of necessary variables the agent needs to communicate with your Bitbucket instance

Prerequisites

• You will need access to create a Bitbucket OAuth Consumer

Bitbucket configuration

Step 1: Create a Bitbucket OAuth Consumer

Follow this Atlassian guide to create an OAuth Consumer.

Once that's done, configure the callback URL to point at your Moderne tenant:

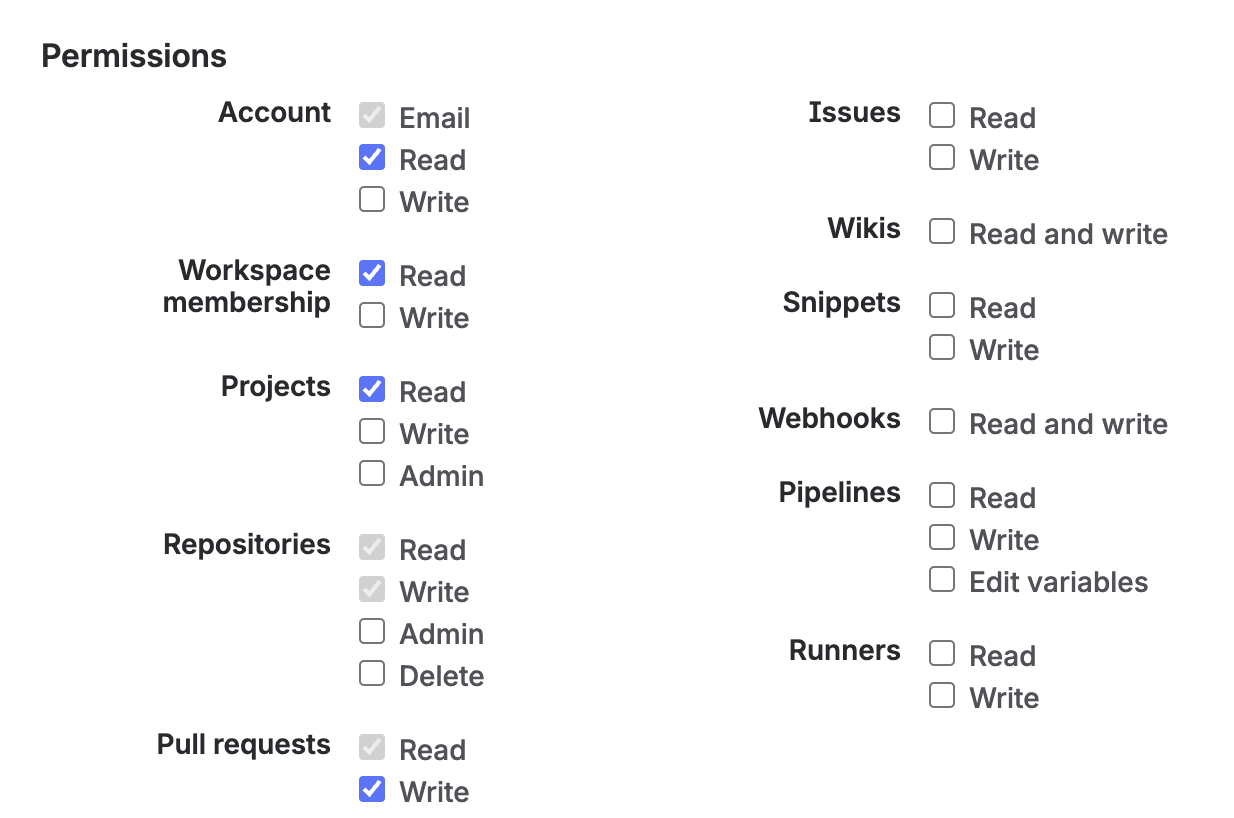

The consumer should have these permissions:

• Projects - Read
• Repositories - Write
• Pull requests - Write
• Account - Read
• Email - Read

Understanding the required permissions

The OAuth consumer requests the following permissions. Each permission is used for a specific set of operations:

Permission	Required	Purpose
Projects - Read	Yes	Used to verify the user has access to workspaces and list available repositories.
Repositories - Write	Yes	Used to retrieve repository metadata, create forks, and push commits via Git-over-HTTP.
Pull requests - Write	Yes	Used to create, update, close, merge, and approve pull requests, and to read pull request status and build results.
Account - Read	Yes	Used to retrieve the authenticated user's identity (username and display name) so that Moderne can associate commits with the correct user.
Email - Read	Yes	Used to read the user's email address for commit attribution.

Detailed list of Bitbucket Cloud API calls Moderne makes

User identity (Account and Email permissions):

API endpoint	Method	Purpose
/2.0/user	GET	Retrieve the authenticated user's profile
/2.0/user/emails	GET	Retrieve the user's email addresses

Repository access checks (Projects - Read / Repositories):

API endpoint	Method	Purpose
/2.0/workspaces/{workspace}	GET	Check whether a workspace exists
/2.0/repositories/{workspace}?page={page}&pagelen=100	GET	List repositories to verify access
/2.0/repositories/{workspace}/{repo}	GET	Retrieve repository details

Pull request operations (Pull requests - Write):

API endpoint	Method	Purpose
/2.0/repositories/{workspace}/{repo}/pullrequests?state=...&q=...	GET	Find existing pull request
/2.0/repositories/{workspace}/{repo}/pullrequests/{id}	GET	Get pull request details
/2.0/repositories/{workspace}/{repo}/pullrequests/{id}/statuses	GET	Get pull request build statuses
/2.0/repositories/{workspace}/{repo}/pullrequests	POST	Create pull request
/2.0/repositories/{workspace}/{repo}/pullrequests/{id}	PUT	Update pull request
/2.0/repositories/{workspace}/{repo}/pullrequests/{id}/approve	POST	Approve pull request
/2.0/repositories/{workspace}/{repo}/pullrequests/{id}/decline	POST	Close pull request
/2.0/repositories/{workspace}/{repo}/pullrequests/{id}/merge	POST	Merge pull request
/2.0/repositories/{workspace}/{repo}/effective-default-reviewers	GET	Get default reviewers

Fork operations (Repositories - Write):

API endpoint	Method	Purpose
/2.0/repositories/{workspace}/{repo}/forks	POST	Create fork

tip

The OAuth token is scoped to the individual user who authorizes it — Moderne can only perform actions that the user already has permission to do. The token does not grant Moderne any additional access beyond what the user themselves can do in Bitbucket.

Once your consumer has been created, you should see a key and a secret:

Please save those for use in Step 2.

Agent configuration

Step 2: Configure the Moderne agent

The following table contains all of the variables/arguments you need to add to your Moderne agent run command in order for it to work with your Bitbucket instance. Please note that these variables/arguments must be combined with ones found in other steps in the Configuring the Moderne agent guide.

OCI Container

Environment variables:

Variable Name	Required	Default	Description
MODERNE_AGENT_BITBUCKET_CLOUD_OAUTH_KEY	true		The key specified in your Bitbucket OAuth consumer.
MODERNE_AGENT_BITBUCKET_CLOUD_OAUTH_SECRET	true		The secret specified in your Bitbucket OAuth consumer.

Example:

docker run \
# ... Existing variables
-e MODERNE_AGENT_BITBUCKET_CLOUD_OAUTH_KEY=yourOAuthKey \
-e MODERNE_AGENT_BITBUCKET_CLOUD_OAUTH_SECRET=yourSecretKey \
# ... Additional variables

Executable JAR

Arguments:

Argument Name	Required	Default	Description
--moderne.agent.bitbucket.cloud.oauthKey	true		The key specified in your Bitbucket OAuth consumer.
--moderne.agent.bitbucket.cloud.oauthSecret	true		The secret specified in your Bitbucket OAuth consumer.

Example:

java -jar moderne-agent-{version}.jar \
# ... Existing arguments
--moderne.agent.bitbucket.cloud.oauthKey=yourOAuthKey \
--moderne.agent.bitbucket.cloud.oauthSecret=yourSecretKey \
# ... Additional arguments
