Configure a Connector with Maven repository access

This guide explains how to configure the Moderne Connector to talk to a Maven-formatted artifact repository (Artifactory, Nexus, etc.) so the Connector can discover and download your LST artifacts.

When your repository CSV does not include publishUri values, the Connector uses the Maven Indexer to discover LST locations. Note that there will be a delay between when an LST is published and when it shows up in Moderne, controlled by a batch index-update process. Even when your CSV already includes publishUri values, the credentials you configure here are still used to fetch LSTs from the repository. This connection also allows Moderne to look up dependency versions to determine if a new version is available.

note

This page covers Maven repositories used to serve LST artifacts for code analysis. If you're looking to configure repositories for recipe artifacts (Maven, NPM, NuGet, or PyPI), see Recipe marketplace repositories instead.

There are a variety of services that support Maven-formatted artifact repositories. Some examples include JFrog Artifactory, Sonatype Nexus, and Azure Artifacts.

This guide will explain how to:

Prerequisites​

  • You might need a username and password for a user that is allowed to resolve artifacts.
info

In many organizations, artifact resolution is unauthenticated while artifact publishing is authenticated. If artifact resolution is unauthenticated, you may omit the username/password configuration in the Configuration step.

Publishing LST artifacts​

Configure the Maven Indexer​

In order to publish LST artifacts, the artifact registry must be regularly updated with an index in the Maven Indexer format. The frequency with which the index is updated is an approximation of the time it will take for an LST that is published to your artifact repository to show up in Moderne. You will need to decide where the border is between faster publishing and the load required on your Artifactory instance.

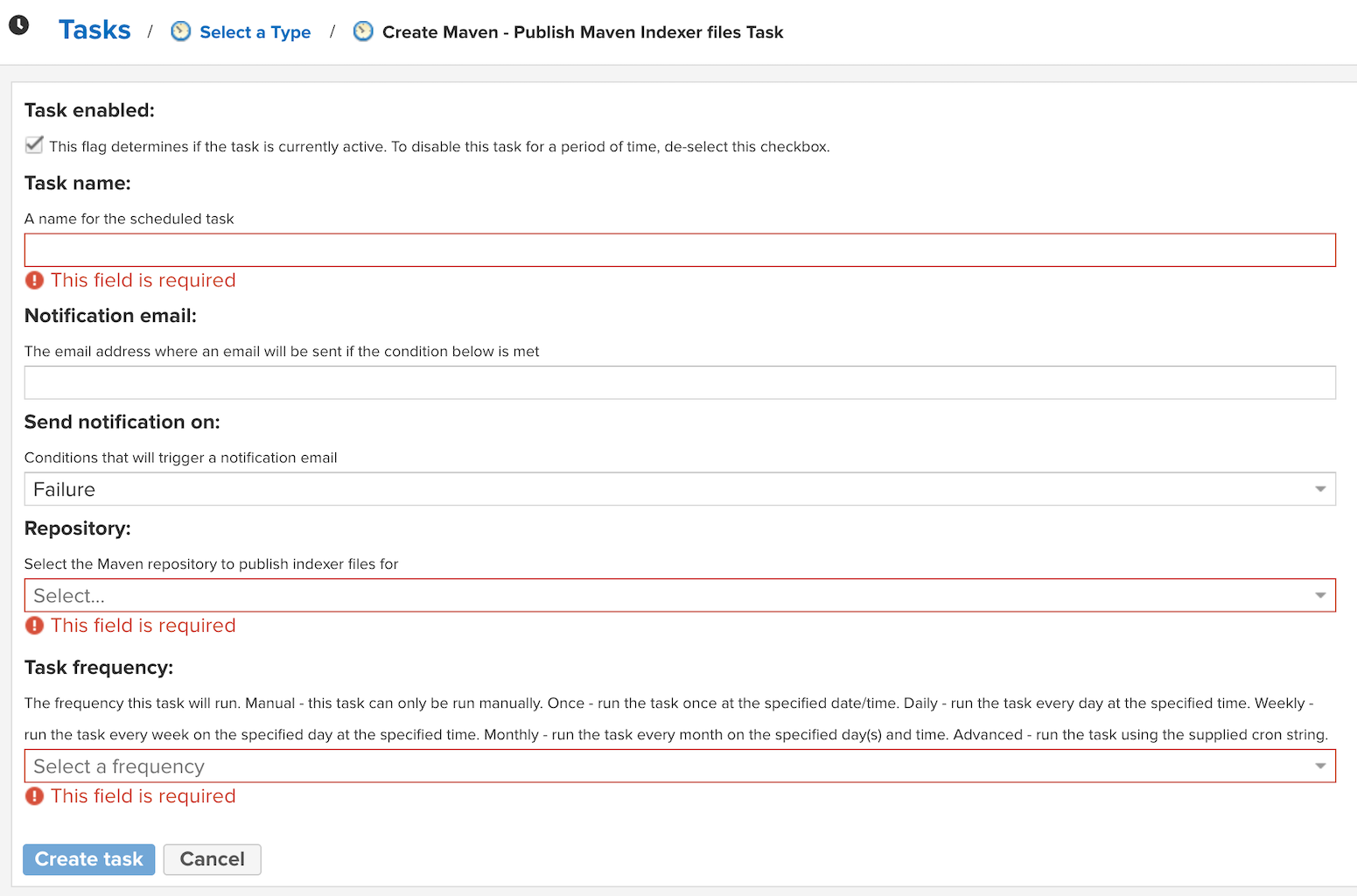

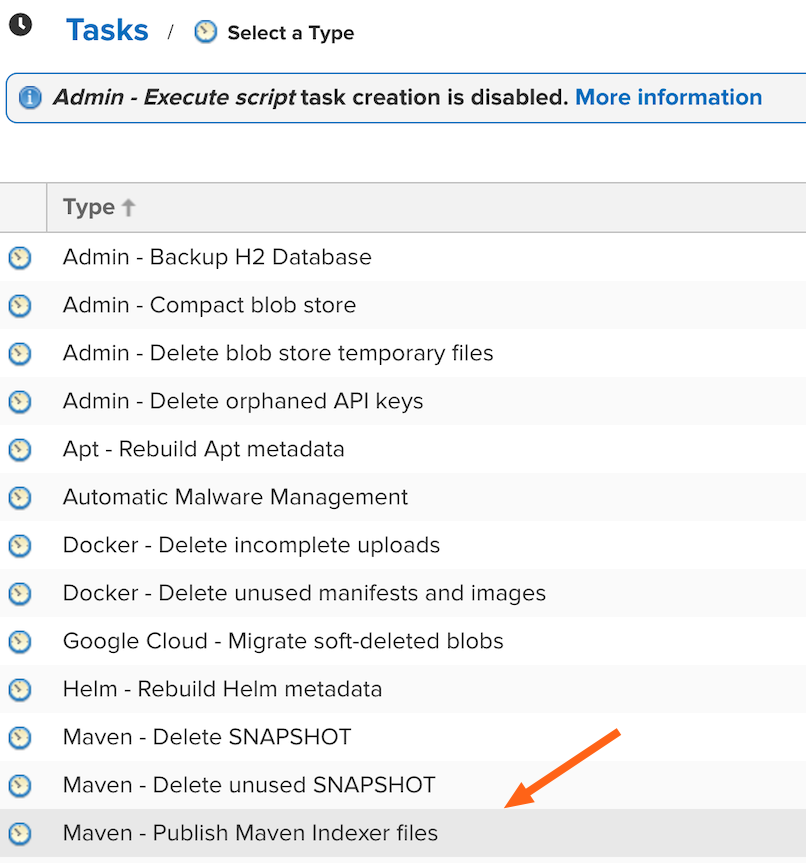

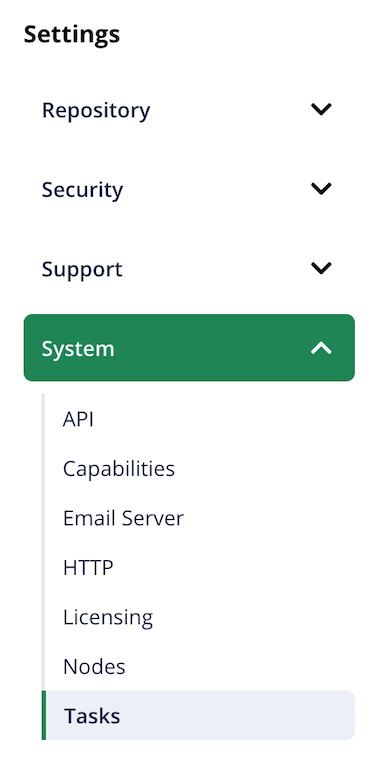

Please follow the below instructions to configure the indexer for your Maven formatted repository:

warning

If you are using Artifactory to publish LST artifacts, it is highly recommended that you follow the instructions in the configuring a Connector with Artifactory doc instead as that will result in faster artifact consumption while also avoiding substantial load on your Artifactory instance. The following instructions should only be followed if you can not use AQL for some reason.

In Artifactory, select the Artifactory link on the left nav and then select Maven Indexer under Services:

Artifactory Administration panel with Maven Indexer highlighted under Services

For a repository to be a source of LSTs, it must be included in the list of repositories that are indexed:

Maven Indexer settings with cron expression, available repositories, and included repository list

Configuring the Moderne Connector​

The following table contains all of the variables/arguments you need to add to your Moderne Connector run command in order for it to get LST artifacts from your Maven formatted repository. Please note that these variables/arguments must be combined with ones found in other steps in the Configuring the Moderne Connector guide.

You can configure multiple Maven formatted repositories by including multiple entries, each with a different {index}.

Environment variables:

Variable NameRequiredDefaultDescription
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_URItrueThe URL of your Maven repository.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_LOCALREPOSITORYfalse~/.moderne-mavenThe path on disk where LST artifacts and Maven index files will be downloaded to. This is on the disk where the Connector is being run and not on the Maven instance.

LST artifacts are deleted from this location after they are transmitted to Moderne. Index files will remain behind to be used to detect diffs in the artifacts.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_USERNAMEfalsenullThe username used to resolve artifacts.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_PASSWORDfalsenullThe password used to resolve artifacts.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_RELEASESfalsetrueSpecifies whether or not this repository should be searched for releases.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_SNAPSHOTSfalsetrueSpecifies whether or not this repository should be searched for snapshots.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_SKIPSSLfalsefalseWhether or not to skip SSL/TLS verification for calls from the Connector to this Maven repository. This must be set to true if you use a self-signed SSL/TLS certificate.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_SKIPVALIDATECONNECTIVITYfalsefalseBy default, on Connector startup, we will validate that we can connect to this Maven repository, and fail to start up the Connector if we cannot. Set this to true to skip this validation.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_PROXY_HOSTfalseThe hostname of a proxy server to use for connections to this Maven repository.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_PROXY_PORTfalseThe port of the proxy server to use for connections to this Maven repository.
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_CONNECTTIMEOUTfalse30sTimeout for the connection to be established (and the first data received). Specified as a duration (e.g., 30s, 1m).
MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_{index}_READTIMEOUTfalse60sTimeout for reading the response body from the Maven repository. Specified as a duration (e.g., 60s, 5m).

Example:

docker run \
# ... Existing variables
-e MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_0_URI=https://myartifactory.example.com/artifactory/libs-releases-local \
-e MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_0_USERNAME=admin \
-e MODERNE_CONNECTOR_ORGANIZATION_POLL_MAVEN_0_PASSWORD=password \
# ... Additional variables
